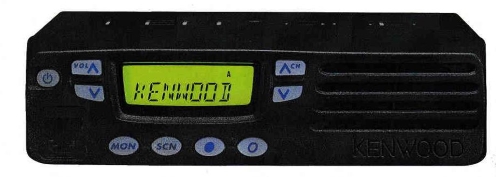

Kenwood TK 7100 mobile radio





Compact yet offering many powerful
features, Kenwood's TK-71 00/81 00
mobiles are designed to play the
leading role in your communications.Kenwood TK7100
These radios are also built tough
enough to withstand all the rigours
of today's demanding applications.

ALPHANUMERIC LCD DISPLAY
The luminous LCD found on the TK-71 00/81 00
offers user-friendly operation thanks to its 13-
segment, 8-digit alphanumeric display with
multiple capabilities.

64 CHANNELS
Providing you with more versatility and
convenience, the memory allocation of the
TK-7100/8100 allows programming of up
to 8 groups within 64 channels.

SCAN FUNCT]ONS
Priority Scan and Group Scan (single/multi)
can be set; add and delete channel(s)
function can also be performed.

TOUGH, COMPACT CONSTRUCTION
Built to take rough treatment in stride, the
TK-7100/8100 meets ten stringent MIL-STD 810
C/D/UF standards. The "bathtub" construction
of the chassis assures excellent heat dissipation
characteristics, and installation is simplified thanks
to the compact external dimensions –
160mm (W)x 43mm (H)x 107mm (D).

HIGH-QUALtTY SPEAKER
The large-diameter oval (58mm x 35mm)
speaker mounted in the front panel assures
excellent clarity.
DTMF / MSK PTT ID
The TK-71 00/81 00 features two PTT lD
formats - DTMF (max. 16-digit DTMF code)
and MSK (FleetSync'M format lD). PTT lD is a
di gital ANI (Automatic Number ldentifier) that
can be sent on each PTT, allowing clear identification
of the person using the transceiver.
. DMS (Digital Message System) funclion has been renamed to Fleeqnc.

VERSATILE DTMF MODES
The TK-71 00/8'1 00 can be set for the
following DTMF encode and decode modes:
I Code Squelch: DTMF code squelch provides
a 3- to 10-digit lD for DTMF paging
operations.
I Selective Call: DTMF selective calling is
a signalling function comprised of DTMF
codes (lD code + lntermediate code +
Status code) that allows reception even
if the radio is left unattended. S0 opens
when the set lD and intermediate code
matches the maximum display of the
5-digit numeric status code.
I Number display*: When the DTMF code is
received - such as the PTT lD number - it is
displayed on the LCD for instant recognition.
Does not operate while Code Squelch or Selective Call is activated

OPERATOR SELECTABLE TONE
Users can freely change the 16 QT/DQT signalling
tones that were set with the FPU; each
signalling tone can also have an 8-digit name.

OTHER FEATURES
. Built-in QT/DQT Signalling . SmarTrunk llrM
0MNl capability (requires SmarTrunk board*)
. Data Ready (KDS-I 00, KGP-2A/28, and 8
Programmable Function Portl . Enarrr,lon
Control Capability . PC**/Self Programming
. AVL capability (with KGP-2ff2B) . Backlit keys
for all buttons . lgnition sense input .4-Programmable
Keys . Busy Channel Lockout
. Embedded Message . Security features
including Badio stun, Radio password, Data
password, Embedded message, and Kenwood
ESN . Channel direct . Time out Timer [I0T)
. Wide/nanow selection per channel
.SmarTrunk
board is available from SmarTrunk Systems lnc,
--Compatible with Windows 98/l\4U2000/XP, English or Spanish version.
