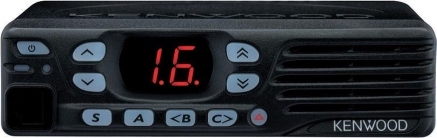

Kenwood TK7302

TK7302

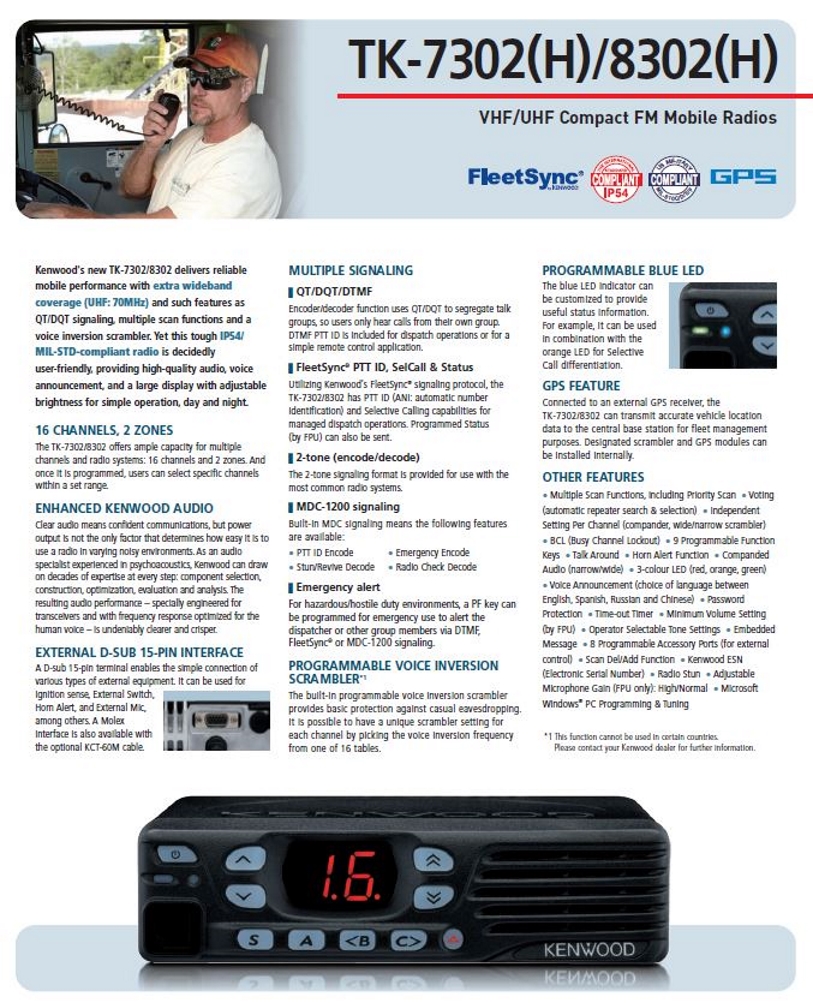

Kenwood's new TK-7302/8302 delivers reliable
mobile performance with extra wideband
coverage (UHF: 70MHz) and such features as
QT/DQT signaling, multiple scan functions and a
voice inversion scrambler. Yet this tough IP54/
MIL-STD-compliant radio is decidedly
user-friendly, providing high-quality audio, voice
announcement, and a large display with adjustable
brightness for simple operation, day and night.
16 CHANNELS, 2 ZONES
The TK-7302/8302 offers ample capacity for multiple
channels and radio systems: 16 channels and 2 zones. And
once it is programmed, users can select specific channels
within a set range.
ENHANCED KENWOOD AUDIO
Clear audio means confident communications, but power
output is not the only factor that determines how easy it is to
use a radio in varying noisy environments. As an audio
specialist experienced in psychoacoustics, Kenwood can draw
on decades of expertise at every step: component selection,
construction, optimization, evaluation and analysis. The
resulting audio performance – specially engineered for
transceivers and with frequency response optimized for the
human voice – is undeniably clearer and crisper.
EXTERNAL D-SUB 15-PIN INTERFACE
A D-sub 15-pin terminal enables the simple connection of
various types of external equipment. It can be used for
Ignition sense, External Switch,
Horn Alert, and External Mic,
among others. A Molex
interface is also available with
the optional KCT-60M cable.
MULTIPLE SIGNALING
QT/DQT/DTMF
Encoder/decoder function uses QT/DQT to segregate talk
groups, so users only hear calls from their own group.
DTMF PTT ID is included for dispatch operations or for a
simple remote control application.
FleetSync® PTT ID, SelCall & Status
Utilizing Kenwood's FleetSync® signaling protocol, the
TK-7302/8302 has PTT ID (ANI: automatic number
identification) and Selective Calling capabilities for
managed dispatch operations. Programmed Status
(by FPU) can also be sent.
2-tone (encode/decode)
The 2-tone signaling format is provided for use with the
most common radio systems.
MDC-1200 signaling
Built-in MDC signaling means the following features
are available:
• PTT ID Encode • Emergency Encode
• Stun/Revive Decode • Radio Check Decode
Emergency alert
For hazardous/hostile duty environments, a PF key can
be programmed for emergency use to alert the
dispatcher or other group members via DTMF,
FleetSync® or MDC-1200 signaling.
PROGRAMMABLE VOICE INVERSION
SCRAMBLER*1
The built-in programmable voice inversion scrambler
provides basic protection against casual eavesdropping.
It is possible to have a unique scrambler setting for
each channel by picking the voice inversion frequency
from one of 16 tables.
PROGRAMMABLE BLUE LED
The blue LED indicator can
be customized to provide
useful status information.
For example, it can be used
in combination with the
orange LED for Selective
Call differentiation.
GPS FEATURE
Connected to an external GPS receiver, the
TK-7302/8302 can transmit accurate vehicle location
data to the central base station for fleet management
purposes. Designated scrambler and GPS modules can
be installed internally.
OTHER FEATURES
• Multiple Scan Functions, including Priority Scan • Voting
(automatic repeater search & selection) • Independent
Setting Per Channel (compander, wide/narrow scrambler)
• BCL (Busy Channel Lockout) • 9 Programmable Function
Keys • Talk Around • Horn Alert Function • Companded
Audio (narrow/wide) • 3-colour LED (red, orange, green)
• Voice Announcement (choice of language between
English, Spanish, Russian and Chinese) • Password
Protection • Time-out Timer • Minimum Volume Setting
(by FPU) • Operator Selectable Tone Settings • Embedded
Message • 8 Programmable Accessory Ports (for external
control) • Scan Del/Add Function • Kenwood ESN
(Electronic Serial Number) • Radio Stun • Adjustable
Microphone Gain (FPU only): High/Normal • Microsoft
Windows® PC Programming & Tuning
US
MILITARY
MIL-810C/D/E/FCOMPLIANT
*1 This function cannot be used in certain countries.
Please contact your Kenwood dealer for further information.
